Premium CNC Spindle Motor Manufacturer Tailored for Precision Machining
Empowering global manufacturing with high-speed, durable, and highly precise spindle motor solutions. Engineered for CNC routers, heavy-duty milling machines, and automated industrial processing. Discover unmatched runout accuracy and thermal stability for your production line.
ISO 9001 & CE Certified
Adhering to the strictest international manufacturing standards. Every CNC spindle motor undergoes rigorous electrical and mechanical testing before dispatch.
Custom OEM & ODM Solutions
Tailored voltage, RPM, torque, and flange design modifications to integrate seamlessly into your proprietary CNC machinery and routing systems.
Global Supply Chain
Exporting reliably to over 60 countries. We ensure secure packaging, optimized sea/air freight logistics, and comprehensive customs documentation.
12-Month Industrial Warranty
Backed by seasoned mechanical engineers. We provide lifetime technical support, VFD parameter guidance, and rapid replacement parts.
Pioneering the Future of High-Frequency Spindle Technology
In the realm of modern manufacturing, the spindle motor acts as the beating heart of any Computer Numerical Control (CNC) machine. A fraction of a millimeter in runout or a slight thermal expansion can mean the difference between a perfectly machined aerospace component and costly scrap. As a premier water-cooled and air-cooled spindle motor manufacturer, we have dedicated over two decades to perfecting the art and science of high-speed motorized spindles.
Our engineering philosophy is built upon the foundation of relentless innovation and uncompromising quality control. We understand that B2B buyers—ranging from CNC router builders to large-scale industrial fabrication facilities—require spindle motors that deliver not just speed, but continuous, uninterrupted torque over thousands of operational hours. By integrating state-of-the-art ceramic angular contact bearings, advanced dynamic balancing technologies, and proprietary stator winding techniques, our products minimize vibration, reduce noise, and maximize thermal efficiency.
Whether your applications involve heavy-duty metal milling, precision stone carving, intricate woodworking, or high-speed PCB routing, our comprehensive portfolio of electro-spindles is engineered to elevate your production capabilities and reduce downtime (OEE).
Explore Our Industrial-Grade Spindle Motor Categories
Our diverse range of CNC spindle motors is meticulously engineered to cater to specific material hardness, feed rates, and environmental conditions.

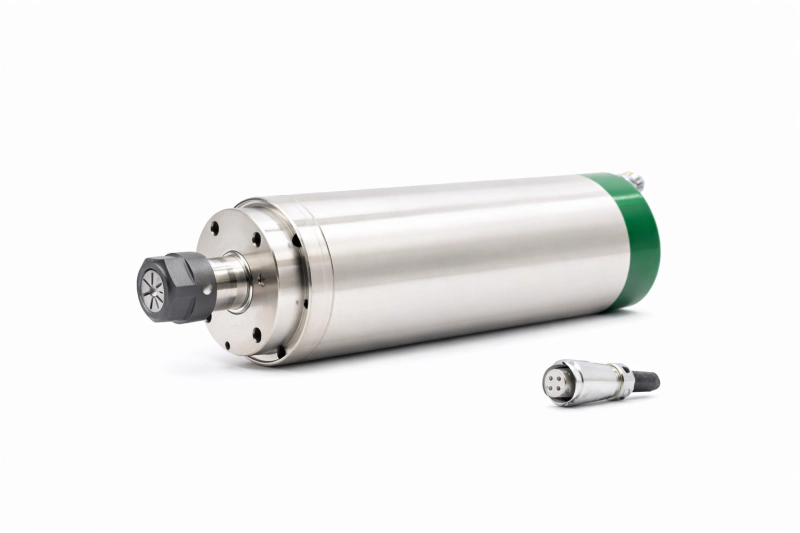

Water-Cooled Spindle Motors
Engineered for continuous, heavy-duty operations where thermal management is critical. Water-cooled spindles circulate liquid coolant through the motor housing, allowing them to maintain optimal operating temperatures during marathon machining sessions.
- Power Range: 0.8kW – 24.0kW
- Speed: 12,000 – 40,000 RPM
- Collet Type: ER11 to ER40
- Applications: Stone cutting, metal milling.

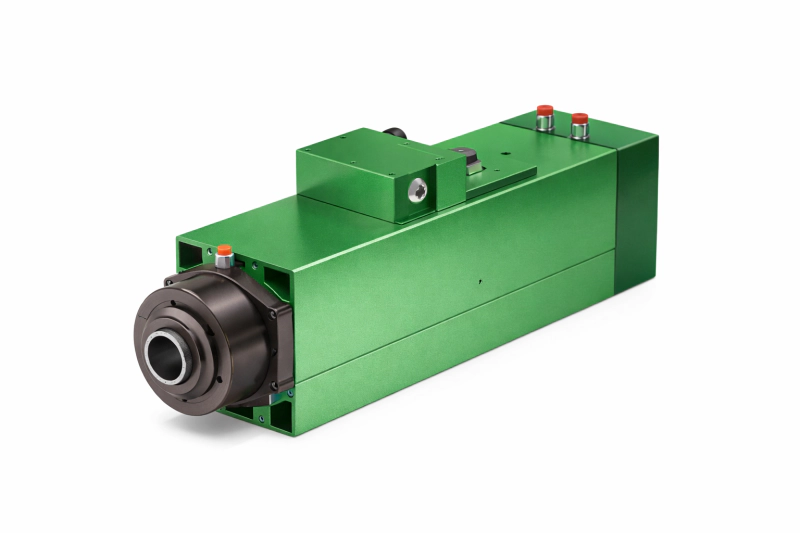

Air-Cooled Spindle Motors
The preferred choice for environments where liquid coolant systems are impractical. These motors utilize integrated impellers or dedicated electric cooling fans to draw ambient air across the internal heat sinks.
- Power Range: 1.5kW – 18.0kW
- Speed: 18,000 – 24,000 RPM
- Cooling: Shaft-driven or Independent fan
- Applications: Woodworking, plastic routing.
ATC Spindle Motors
The pinnacle of CNC automation. ATC spindle motors feature a pneumatic drawbar mechanism that allows for instantaneous, programmatic changing of cutting tools without manual intervention.
- Power Range: 2.2kW – 20.0kW
- Tool Interfaces: ISO30, BT30, HSK63F
- Actuation: Pneumatic tool release
- Applications: Nesting machines, 5-axis CNC.

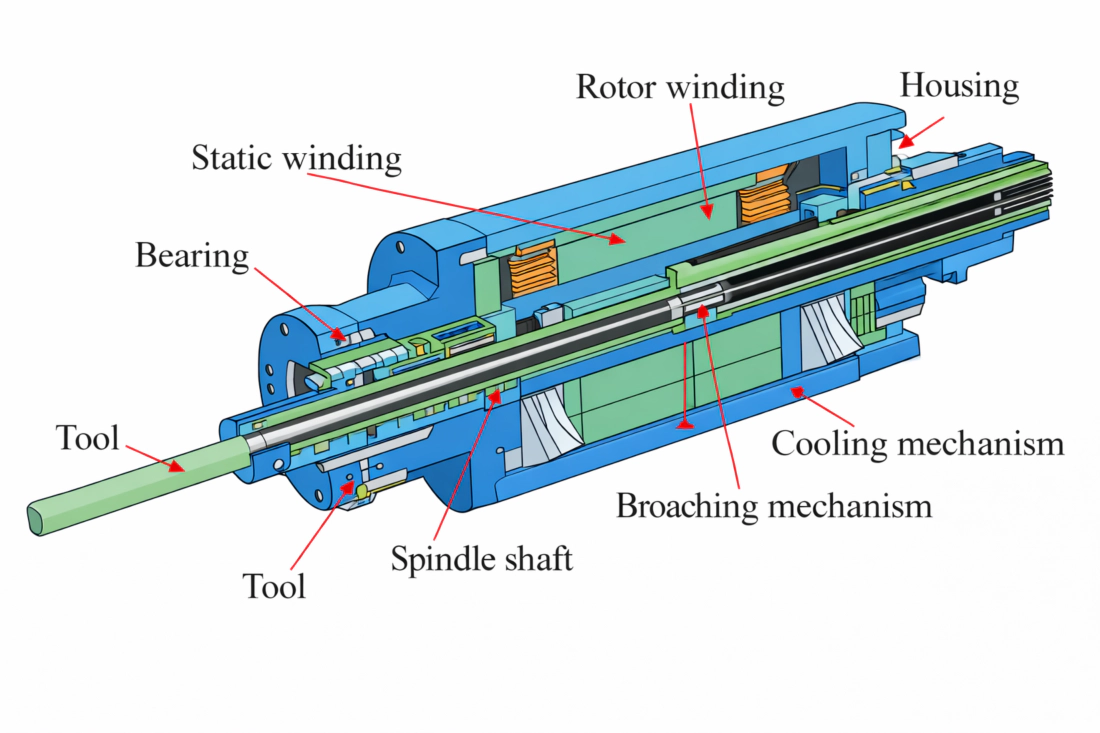

Uncompromising Quality: The Internal Anatomy
What differentiates a standard motor from a high-precision electro-spindle? It resides entirely in the micro-tolerances. We heavily invest in imported materials and cutting-edge manufacturing protocols.
1. Angular Contact Ceramic Bearings
High-speed rotation generates significant centrifugal forces. We utilize premium imported angular contact ceramic ball bearings (P4 precision class). Ceramic bearings are lighter, stiffer, and less susceptible to thermal expansion than steel, resulting in extended operational lifespans and the ability to handle heavy radial/axial loads.
2. Rigorous Dynamic Balancing
Vibration is the enemy of precision. Every rotor assembled in our facility undergoes strict dynamic balancing testing to ISO 1940-1 G0.4 grade. This ensures smooth operation at 24,000 RPM, eliminating chatter marks on the workpiece.
3. Vacuum Pressure Impregnated (VPI) Stators
Our stators are wound with temperature-resistant enameled copper wire and vacuum pressure impregnated with insulating resin. This maximizes electromagnetic efficiency, reduces iron losses, and guarantees stable torque output.
Constant Torque vs. Constant Power
Constant Torque: The motor maintains the same twisting force as speed increases up to the base frequency. Ideal for general CNC routing.
Constant Power: Torque decreases as speed increases above base frequency, but power output remains stable. Used for high-speed finishing.
ER Collet System (ER11 – ER32)
The most widely used clamping system for cylindrical tool shanks. Designed with alternating slots that allow the collet to compress uniformly around the tool shank when the collet nut is tightened, providing excellent grip and low runout precision.
Technical Knowledge Base & FAQs
Answering the most critical technical and commercial inquiries from global machinery builders and CNC distributors.
How do I choose the correct VFD (Variable Frequency Drive) inverter for my spindle motor?
Selecting the correct VFD is crucial to prevent catastrophic motor failure. First, match the power rating (kW) and voltage (220V/380V). Most importantly, match the maximum frequency (Hz). A standard high-speed spindle motor running at 24,000 RPM requires a frequency of 400Hz. Ensure the VFD can output 400Hz. Before operation, you must strictly program the VFD parameters (Base Frequency, Max Frequency, Rated Voltage, Rated Current) according to the spindle’s nameplate. Running a 400Hz spindle on default 50Hz mains settings will burn the stator coils instantly.
What is runout, and why is it a critical specification for spindle motors?
Runout (concentricity) refers to the inaccuracy or wobble of the rotating tool held in the spindle shaft. High runout causes the tool to cut wider than intended, drastically reduces surface finish quality, and puts uneven stress on the tool flutes leading to breakage. Our precision CNC spindle motors guarantee an internal taper runout of less than 0.002mm (2 microns). This extreme accuracy ensures ultra-smooth finishes and prolonged tool life.
What is the typical lifespan of a CNC spindle motor, and how can I maximize it?
The lifespan of a high-quality spindle motor ranges from 3,000 to 10,000 operating hours. The most common point of failure is the bearing system. To maximize lifespan: 1) Always warm up the spindle by running it at 25% speed for 5 minutes before applying a load. 2) Ensure your cooling system (water pump or fans) is fully operational before starting. Never run a water-cooled spindle dry. 3) Ensure the tool and collet are perfectly clean and balanced.
What is the MOQ (Minimum Order Quantity) for international orders?
To support large-scale machinery manufacturers and specialized workshops alike, we maintain a flexible MOQ policy. For standard models currently in inventory (e.g., standard ER20 water-cooled spindles), the MOQ is just 1 unit, allowing clients to test quality before bulk orders. For custom OEM orders requiring unique stator windings or specialized housings, the MOQ typically ranges from 10 to 50 units. We offer EXW, FOB, CIF, and DDP shipping terms.
What is the difference between grease-lubricated and oil-air lubricated spindle motors?
Grease lubrication is the industry standard for most CNC routing and milling applications operating up to 24,000 RPM. It is completely maintenance-free, sealed for the life of the bearing, and highly cost-effective for B2B machine builders. However, for ultra-high-speed applications (typically exceeding 30,000 to 60,000 RPM) or continuous heavy-metal machining, oil-air (or oil-mist) lubrication is utilized. This advanced system continuously injects a precise micro-amount of oil, carried by compressed air, directly into the ceramic bearings. It provides superior cooling, clears micro-debris, and allows for much higher rotational speeds and extended lifespans under extreme conditions, though it requires a more complex external pneumatic setup on the CNC machine.
How do I correctly wire a high-frequency 3-phase spindle motor to prevent EMI and grounding issues?
Proper wiring is critical for both the lifespan of the electro-spindle and the operational stability of your CNC controller. Always use high-quality, shielded, flexible VFD cables to connect the Variable Frequency Drive (VFD) to the spindle. The cable shield must be properly grounded at both the VFD earth terminal and the spindle housing to mitigate Electromagnetic Interference (EMI), which can otherwise cause false triggering of CNC limit switches or step loss in servo/stepper motors. Our standard 4-pin aviation connectors are clearly mapped: pins 1, 2, and 3 (U, V, W) are for the 3-phase power (swapping any two wires reverses the rotation direction), and the 4th pin is strictly for the ground wire. Warning: Never connect mains power (50Hz/60Hz grid power) directly to a high-frequency spindle; it must always be routed through a properly programmed VFD.
Trusted by Global CNC Machine Builders & Facilities
Don’t just take our word for it. Read how our precision spindle motors are performing in rigorous industrial environments across the globe.
★★★★★
“We’ve integrated over 200 of their 2.2kW water-cooled spindles into our automated woodworking routers over the past two years. The batch-to-batch consistency is remarkable. Runout consistently measures under 0.002mm right out of the box, which has significantly reduced our assembly and calibration times. Their flexible MOQ and reliable DDP shipping make them a solid supply chain partner.”
Markus T.
Production Manager, CNC Machinery Builder (Germany)
★★★★★
“Upgrading our 5-axis gantry to their 9.0kW ISO30 ATC spindle was a game-changer for our aluminum milling operations. The pneumatic drawbar is flawless, and the ceramic bearings handle aggressive feed rates without thermal expansion issues. What truly impressed us was their engineering support—they walked our technician through the precise VFD parameter setup via video call. Excellent post-sales service.”
David R.
Operations Director, Precision Machining Solutions (USA)
★★★★★
“Stone fabrication is a brutal environment for any motor due to highly abrasive dust and constant water spray. We switched to their sealed, air-pressurized water-cooled models last year. The labyrinth seal design is highly effective; we haven’t experienced a single bearing failure or short circuit since the transition. It’s rare to find a manufacturer that genuinely understands the specific environmental challenges of our industry.”
Elena V.
Head of Procurement, StoneCraft Automation (Italy)
Beyond Spindles: Your Comprehensive Industrial OEM/ODM Partner
While precision spindle motors are our signature expertise, our manufacturing and supply chain capabilities extend far across the heavy industry spectrum. We provide integrated power, transmission, and machinery solutions for mining, agriculture, and automated manufacturing.
Advanced Motors & Fluid Systems
Specialized drive and fluid solutions built for harsh operational environments.
- GOST Standard Motors: Russian standard compliance for export.
- Stainless Steel Motors: Washdown-duty for food & chemical sectors.
- Hydraulic Cylinders: Heavy-duty actuation for mining and agriculture.
- Industrial Pumps & Compressors: High-efficiency vacuum pumps and air compressors.
Precision Gear & Drive Units
Robust torque multiplication and speed reduction mechanisms.
- Industrial Gearboxes: Helical, bevel, and worm gear units.
- Planetary Gearboxes: High torque density for automation.
- Agricultural Gearboxes: Rotary cutter and implement drives.
- Custom Motor Matching: Pre-assembled motor and gearbox combos.
Power Transmission Components
High-grade linkages ensuring seamless kinetic energy transfer.
- Drive Shafts (PTO): For heavy industrial and tractor implements.
- Gear Racks & Pinions: Precision linear motion components.
- Sprockets & Roller Chains: High-tensile conveyor and drive chains.
- Pulleys & Belts: V-belt and timing belt solutions.
Machinery & Environmental Tech
Complete equipment systems and specialized industrial spares.
- Agricultural Machinery: Balers, stone crushers, and OEM parts.
- Mining Transport: Heavy-haul equipment and spare parts.
- Plastic Processing: Blow molding machines.
- RTO Equipment: Regenerative Thermal Oxidizers for VOC emission control.
Ready to Upgrade Your CNC Machinery Performance?
Partner with a manufacturer that prioritizes precision, durability, and robust B2B support. Contact our engineering sales team today to discuss bulk pricing, custom OEM requirements, or to request a sample spindle motor.
